AEF6 Electric Bicycle KT-22A Controller

(13)
$72.52
In stock
Usually ships within 24 hours
Color

Ready to work out of the box!

Includes all key accessories and simple setup instructions for quick start!

Share

Delivery 16 To 19 Days

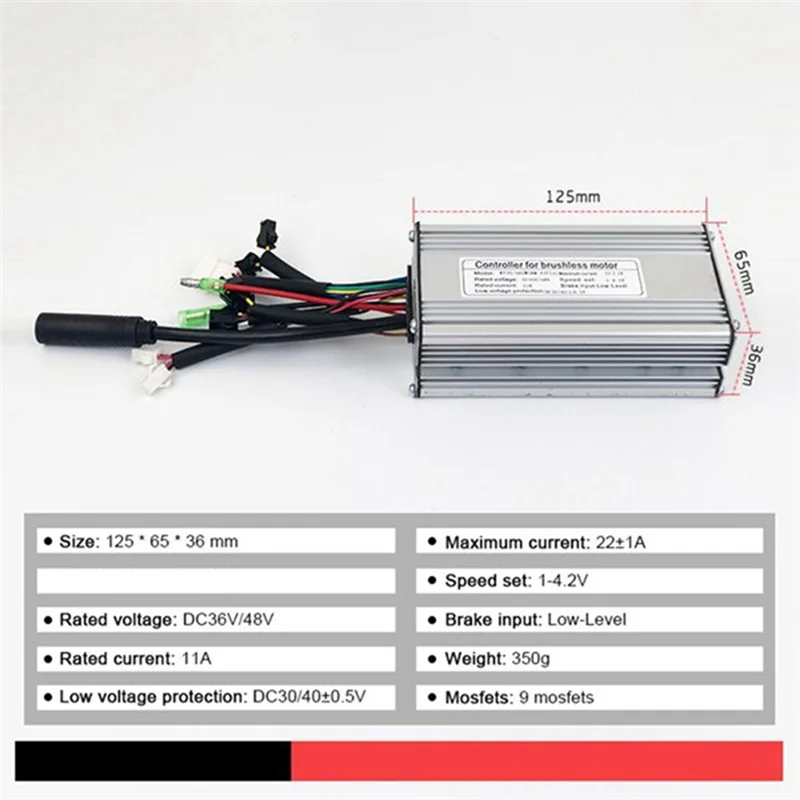

The AEF6 Electric Bicycle KT-22A Controller is designed to enhance the performance and efficiency of your electric bike. This advanced controller is compatible with both 36V and 48V systems, making it a versatile choice for various electric bicycle setups.

  • High Compatibility: Works seamlessly with 36V/48V systems, ensuring optimal functionality.
  • Durable Construction: Built with quality materials to withstand demanding conditions and provide long-lasting performance.
  • Double Headed Light Line: Features a double-headed light line for enhanced visibility and safety during nighttime rides.

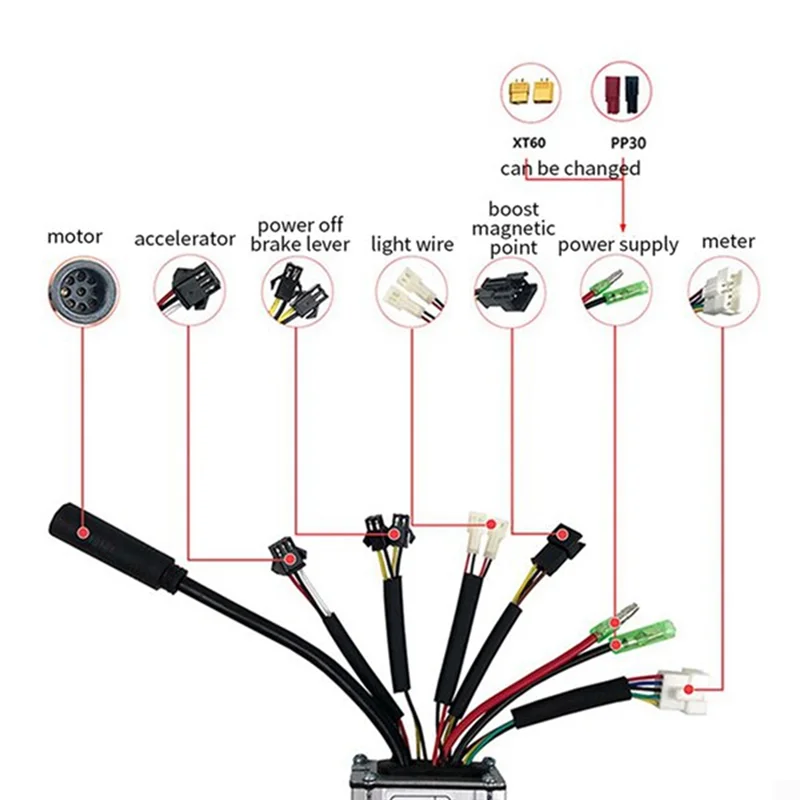

  • SM Connector: Equipped with a square wave SM connector for easy and reliable connections, simplifying installation and maintenance.

Customer Reviews

Based on 13 reviews
77%
(10)
0%
(0)
8%
(1)
0%
(0)
15%
(2)
S
Sarina Oberbrunner

For 48v 500w Bafang electric motor, super

K
Karly Collins

I started the controller on the electric scooter. At first, the gas pedal did not work (it works via UART, along with the display). I spoke with the seller, he tried to help for half an hour but nothing worked out. He said that if there is a display with a throttle handle (working via UART), then the THROTTLE input can be left unconnected. But there is an LED on the controller that shows errors, so if the THROTTLE is left unconnected, error 2 will appear (the LED blinks twice) and the throttle will not work. If you have the same combination as mine, then you need to make a dummy emulator for the THROTTLE controller connector: there are three wires there - black (ground), green (signal), red (5V). It is necessary to ensure that there is a zero throttle signal (safety) when the controller is started; this can be done using a resistor divider: ground - 20kΩ - signal - 10kΩ - 5V. (I did have some denominations). Then the LED will flash once, which means permission to drive. Thank you.

E
Etsuko Torp

They did a great job; the board is suitable for many bikes with a 12Ah battery or more, and it seems like there won't be any issues with it.

D
Dominga Jerde

on-time delivery

J
Jenny Welch

Highly recomended. Very easy to connect the wires to my existing ebike. I was actually surprised by the 350watt power it gave when i was riding uphill.
