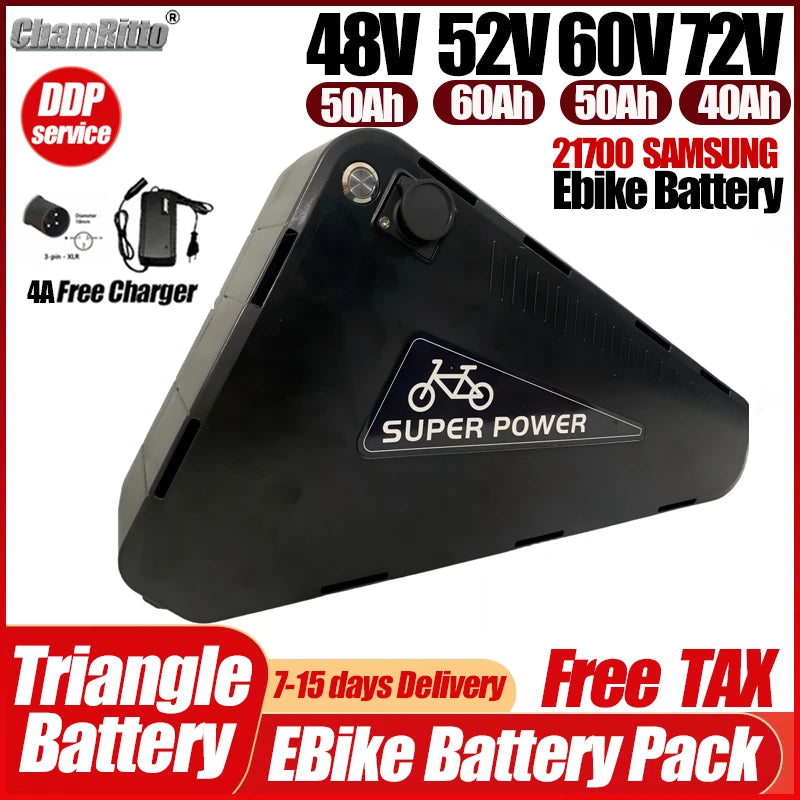

Samsung 21700 Triangle E-Bike Battery 36V 48V 52V 60V 72V, 30Ah–60Ah with BMS & Charger for 250W–3000W Motors

Delivery 15 TO 19 Days

Upgrade your electric bike, scooter, tricycle, or custom conversion kit with this high-capacity triangular lithium-ion battery pack. Built using 21700 lithium-ion cells, it is available in multiple voltage and capacity options to support motors ranging from 250W to 3000W.

The triangle-shaped design is made for installation inside compatible bicycle frames. Each battery includes a built-in battery management system that helps protect against overcharging, over-discharging, excessive current, short circuits, and cell imbalance.

Key Features

• Available voltages: 36V, 48V, 52V, 60V, and 72V

• Available capacities: 30Ah, 35Ah, 40Ah, 50Ah, and selected 60Ah options

• 21700 lithium-ion cell configuration

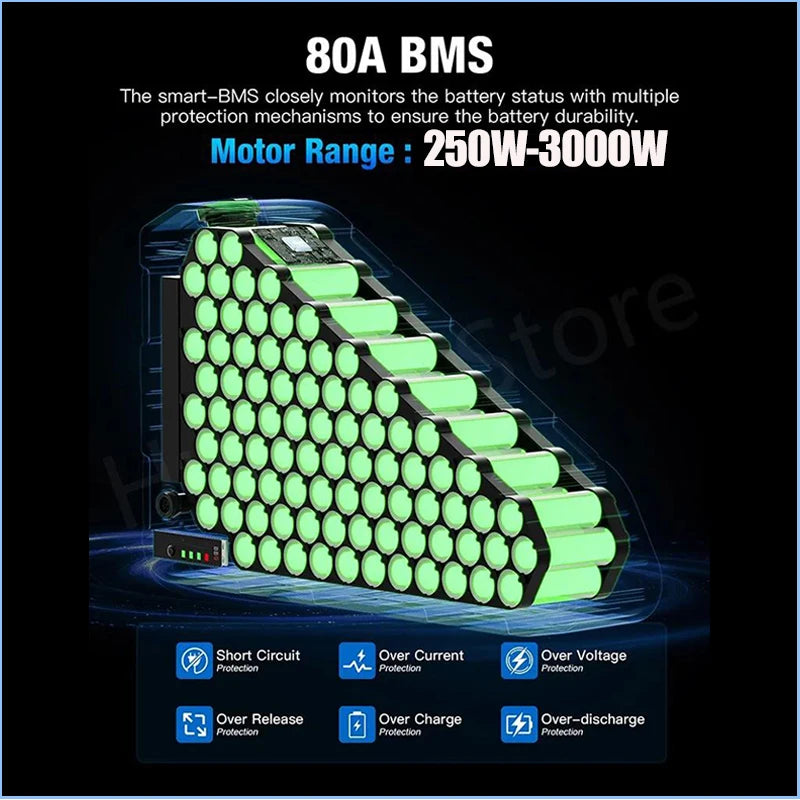

• Built-in 60A–100A BMS, depending on the selected configuration

• Maximum continuous discharge current up to 90A

• Peak discharge current up to 100A

• Suitable for 250W–3000W motor systems

• Includes a compatible CC/CV battery charger

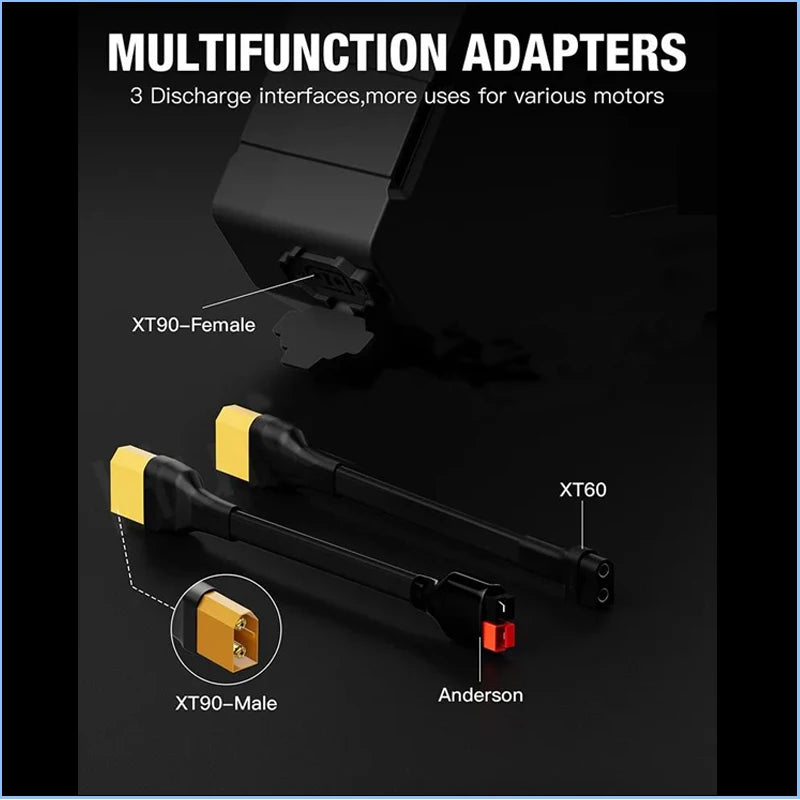

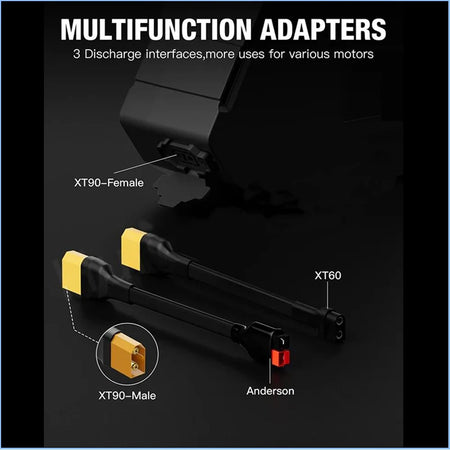

• Includes approximately 30 cm output cable

• Triangular frame-mount design

• Overcharge, over-discharge, overcurrent, short-circuit, and balancing protection

• Rated for more than 1,000 charge cycles under proper operating conditions

• Suitable for electric bicycles, scooters, wheelchairs, tricycles, and conversion kits

Voltage and Charger Information

36V Battery

• Full-charge voltage: 42V

• Discharge cut-off voltage: approximately 28V

• Motor compatibility: 250W–2000W

• Included charger: 42V 4A

• Cell configuration: approximately 10S6P–10S10P

48V Battery

• Full-charge voltage: 54.6V

• Discharge cut-off voltage: approximately 39.2V

• Motor compatibility: 250W–2000W

• Included charger: 54.6V 4A

• Cell configuration: approximately 13S6P–13S9P

52V Battery

• Full-charge voltage: 58.8V

• Discharge cut-off voltage: approximately 42V

• Motor compatibility: 250W–2000W

• Included charger: 58.8V 4A

• Cell configuration: approximately 14S6P–14S8P

60V Battery

• Full-charge voltage: 67.2V

• Discharge cut-off voltage: approximately 48V

• Motor compatibility: 250W–3000W

• Included charger: 67.2V 3A or 4A, depending on the selected configuration

• Cell configuration: approximately 16S5P–16S7P

72V Battery

• Full-charge voltage: 84V

• Discharge cut-off voltage: approximately 60V

• Motor compatibility: 250W–3000W

• Included charger: 84V 3A or 4A, depending on the selected configuration

• Cell configuration: approximately 20S4P–20S6P

Available Battery Dimensions

Depending on the selected voltage and capacity, the battery may be supplied in one of the following approximate sizes:

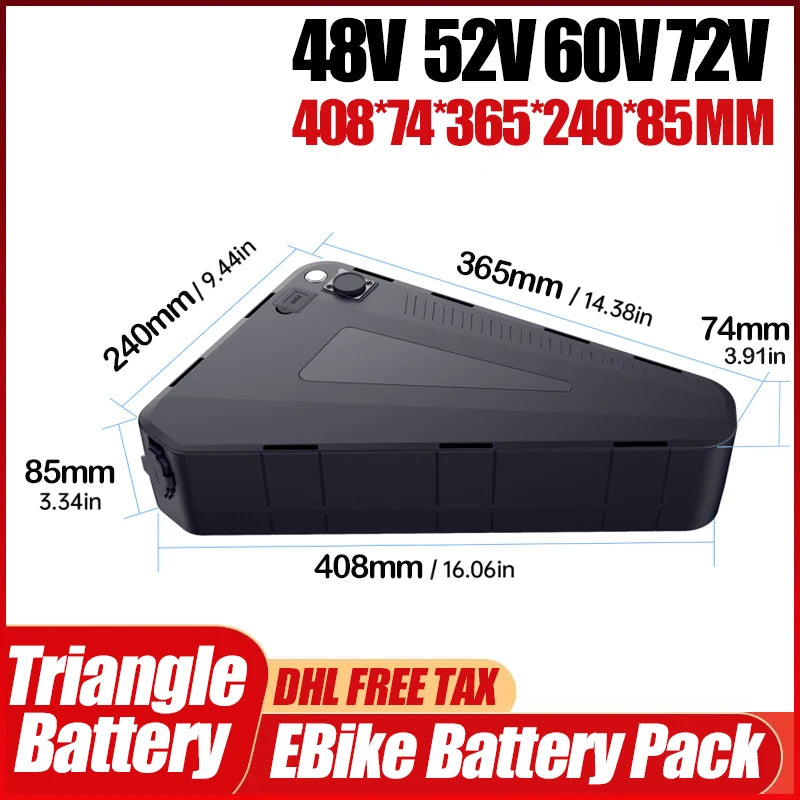

• 408 × 365 × 240 × 85 × 74 mm

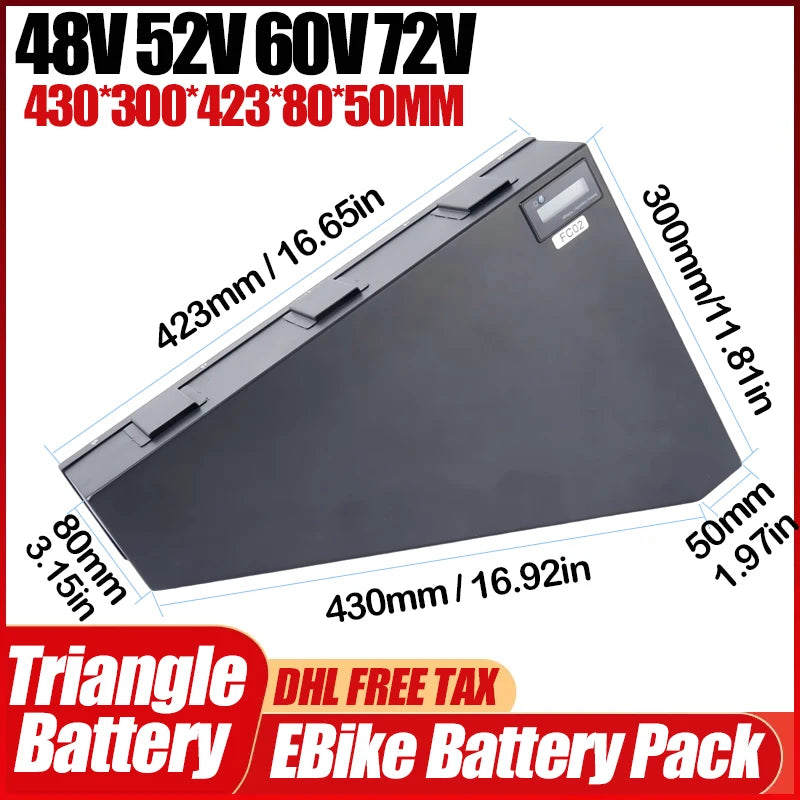

• 430 × 423 × 300 × 80 × 50 mm

Please allow a measurement difference of approximately 1–3 mm.

Approximate packaged weight: 7–14 kg, depending on voltage and capacity.

Package Includes

• 1 × Triangle lithium-ion battery pack

• 1 × Protective battery bag or case

• 1 × Compatible battery charger

• 1 × Approximately 30 cm output cable assembly

Compatibility Notice

The battery voltage must match your motor controller and electrical system. A battery with the wrong voltage can damage the controller, motor, display, wiring, or other components.

Before ordering, please confirm:

• Required battery voltage

• Motor wattage

• Controller current rating

• Available frame space

• Battery dimensions

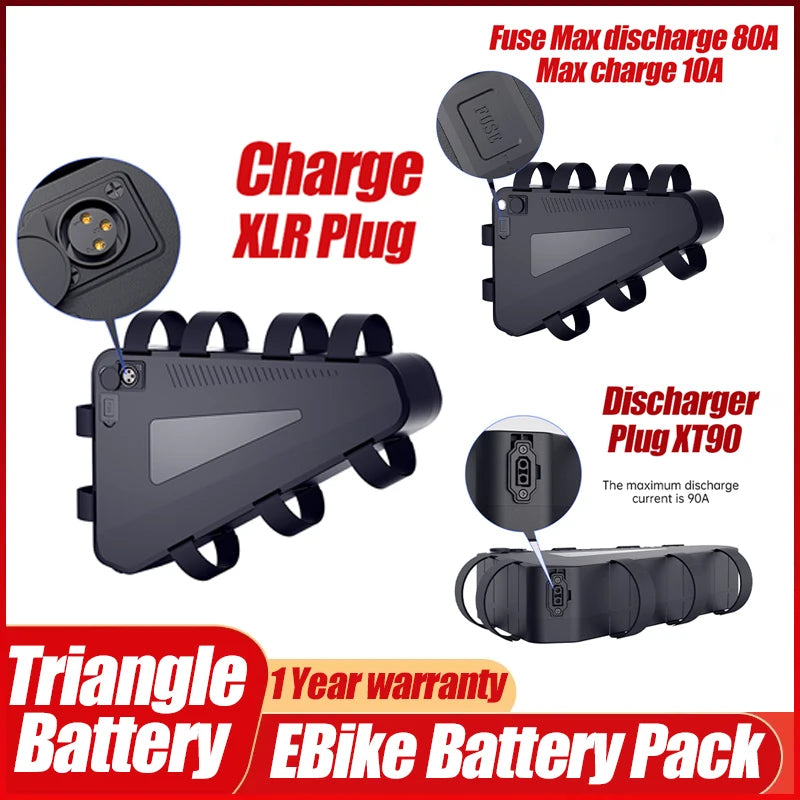

• Charging connector type

• Output connector type

• Required discharge current

Connector types may vary. Please contact us with photos of your existing battery, charger plug, output connector, controller label, and available frame space before ordering if you are unsure.

Important Safety Information

Lithium-ion batteries may present a fire, electric-shock, or injury risk when damaged, incorrectly installed, improperly charged, short-circuited, modified, or used with incompatible equipment.

• Use only the charger supplied with the battery or an approved charger with the correct voltage and connector.

• Do not leave the battery charging unattended.

• Do not charge near flammable materials.

• Do not charge or use a swollen, leaking, overheated, wet, punctured, crushed, or damaged battery.

• Do not open, modify, disassemble, or short-circuit the battery.

• Keep the battery away from fire, excessive heat, water, and direct sunlight.

• Installation should be completed by a qualified electric-bike technician.

• Secure the battery firmly before riding.

• Follow the supplied instruction manual for charging, installation, operation, and storage.

• Store the battery in a cool, dry, ventilated location away from children and flammable materials.

• Check your local authority’s requirements for lithium-ion battery recycling and disposal. Never place the battery in household waste.

Battery performance, range, cycle life, and usable capacity depend on rider weight, terrain, speed, temperature, tire pressure, controller settings, motor power, and charging practices.
